General description
Each pub brewery system designed by Alston team follows the unique brewing recipe and brewing habit.Following the preference of building layout and decoration, the brewhouse can be well combined with overall style.
Brewhouse can be with copper cladding, the whole system can be assembled as the dixed and commissionaed before transport, which helps save more labor cost and shorten time of on site installation.
We care more about details of such brewery system, the exact timeline and quality is always the priority and basis for each perfect project.
With this we bring all the craft beer fans with the best experience from craft beer and brewing.

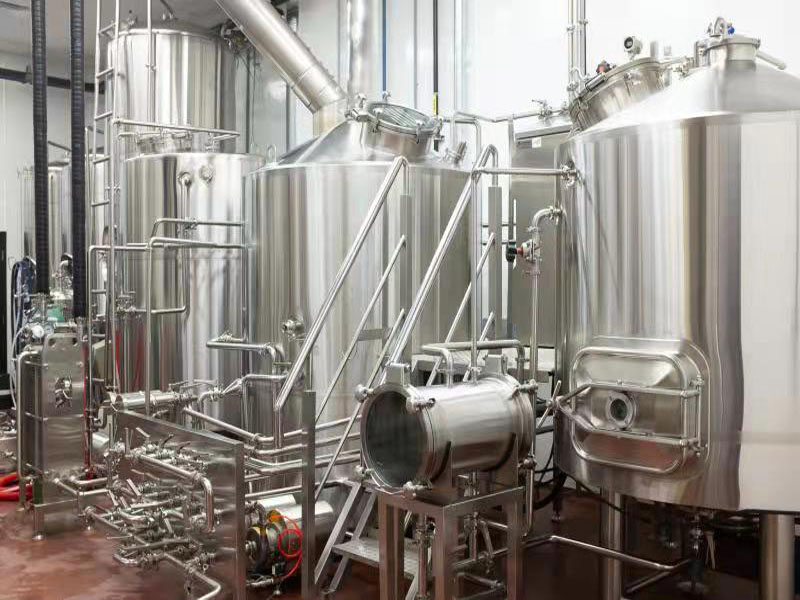

The pub brewery system is exactly designed as the basic building request and achieves perfectly production request. The basic configuration is divided into normal German style three vessel or US style two vessel.
The basic parameter is with small occupied space, compact layout and flexibility. The operation is simple and easy, with different models, overview is beautiful.
There is also more options of customized configuration. The brewing system is good optiona for hotels, pubs, micro breweries and restaurants etc.
Equipment Description
FEATURES
Modular design, compact footprint.
Combination between with space and brewing process.
Simple, easy operation but perfect solution to guarantee stable beer quality.
Well pre-assembled system for easy installtion.
Always following the local authority regulation.
Good balance between investment and future profits based on limited budget.
Capacity: 3HL 5HL 10HL Or 3BBL 5BBL 10BBL or customized.
Heating method: Steam (recommended), Direct fire, Electric element.
According to customers' usage habits and brewing requirements, we divide mashing into the following categories:
Brewhouse:
Combined system(mash boiling tank, upper lauter and bottom whirlpool)
2vessel(mash/lauter tank, kettle/whirlpool tank),
3vessel(mash tun, lauter tank, kettle/whirlpool tank);
It is flexible to do either decoction or infusion mashing process. The whole brewhouse sized as exact beer plato / gravity from client.
The whole system is compact and easy to install.
NOTE: If you want to customize any of our standard sets of brewing equipment, all you need to do is to send us your request.
| No. | Item | Equipment | Specifications |
| 1 | malt milling system | Malt miller machine | The entire grain milling unit from outside silo to inside mill, receptacle, premasher and so on |
| Grist case (optional) | |||
| Flex auger (optional) | 1.Conveys grist from malt mill to grist case;2.Inside stainless screw, outside PPR protection tube;3.Associated motor with frequency conversion | ||
| 2 | Mash system | Mash tank, | 1.Machinical Agitation: With VFD control, at the top horizontal motor with seal.2.Steam venting chimney with anti backflow pipe.3.Condensate recycle to hot water tank. |
| Lauter tank | Function: lauter, filter the wort.1.Sparging pipe for grain washing with TC connection.2.Wort collecting pipe and back washing device to cleaning false bottom.3.Mechanical Raker: VFD control, gear motor on the top.4.Spent grain:Automatic raker device, Grain removing plate with reverse, forward is raker, reverse is grain out.5.Milled false bottom: 0.7mm distance, diameter designed suitable for the lauter tun, with dense supporting leg, detachable handle.6.Wort circulation inlet TC on top with elbow and mash inlet upon false bottom on side wall.7.Side mounted spent grain port .8.With discharge hole, thermometer PT100 and necessary valves and fittings. | ||
| Boiling Whirlpool tank | 1.Whirlpool tangent pumped at 1/3height of the tank2.Steam venting chimney with anti backflow pipe.3.Condensate recycle to hot water tank. | ||
| Hot water tank (optional) | 1.Steam Jacket heating/direct gas fired heating/electric heating2.Sight gauge for water level3.With SS HLT pump with variable speed control | ||
| Mash/wort/hot water pump | Transfer the wort and water to each tank with frequency control. | ||
| Operation pipes | 1.Material: SS304 sanitary pipes.2.Sanitary stainless steel valve and pipeline, Easy to operate and reasonable in design;3.Wort inlet at side of tank to reduce the oxygen. | ||
| Plate heat exchanger | Function: wort cooling.1.Two stage and six flow, hot wort to cold wort, tap water to hot water, glycol water recycle.2.Design Structure: Suspension type, screw material is SUS304, nut material is brass, easy disassembled for cleaning.3. Stainless steel 304 material4.Design pressure:1.0 Mpa;5.Working temperature:170°C.6.Tri-clamp quick-installed. | ||
| 3 | Fermenting system(Celler) | Beer fermenters | Jacketed Conical fermentation tank for beer cooling, fermenting and storage. 1.All AISI-304 Stainless Steel Construction2.Jacketed & Insulated3.Dual Zone Dimple Cooling Jacket4.Dish Top & 60° Conical Bottom5. Stainless Steel Legs with Leveling Ports6.Top Manway or Side Shadow less Manway7.With Racking arm, Discharge Port, CIP Arm and Spray Ball, Sample Valve, Shock proof Pressure Gauge, Safety Valve, Thermowell and Pressure regulator valve. |
| 4 | Bright beer system | Bright beer tanks (optional) Yeast adding tank Accessories, such as sample valve, pressure gauge, safety valve and so on |
Beer maturation/conditioning /serving/filtered beer receiving.1.All AISI-304 Stainless Steel Construction2.Jacketed & Insulated3.Dual Zone Dimple Cooling Jacket4.Dish Top & 140° Conical Bottom5.Stainless Steel Legs with Leveling Ports6.Top Manway or Side Shadow less Manway7.With Rotating Racking arm, Discharge port, CIP Arm and Spray Ball, Sample Valve, Shock proof Pressure Gauge, Safety Valve, Pressure regulator valve, Thermowell, Level sight, Carbonation stone. |
| 5 | Cooling system | Ice water tank | 1.Insulated conical top and sloped bottom2.Liquid level sight tube for water level3.Rotating CIP spray ball |
| Refrigerating unit Ice water pump |
Assembly unit, wind cooling, enviromental refrigerant: R404a or R407c, compressor and electrical part meet UL/CUL/CE certification. | ||
| 6 | CIP cleaning system | disinfection tank & alkali tank &cleaning pump etc. | 1).Caustic tank: Elctric heating element inside, with anti-dry device for safety.2).Sterilization tank: Stainless steel vessel.3).Control and pump:Portable sanitary CIP pump, SS cart and controller. |
| 7 | Controller | Control system: | PLC automatic and semi-automatic, the elements brand include Schneider, Delixi, Siemens and so on. |
