Factory Free sample Probrewer - 3BBL Microbrewery Equipment Beer Brewing System – Alston

Detail

3.5bbl brew system for beer Pub&Bar&Restaurant

According to customer’s requirement, then we can provide you 3-5bbl brew system with combination system for save your invest and brewing area.

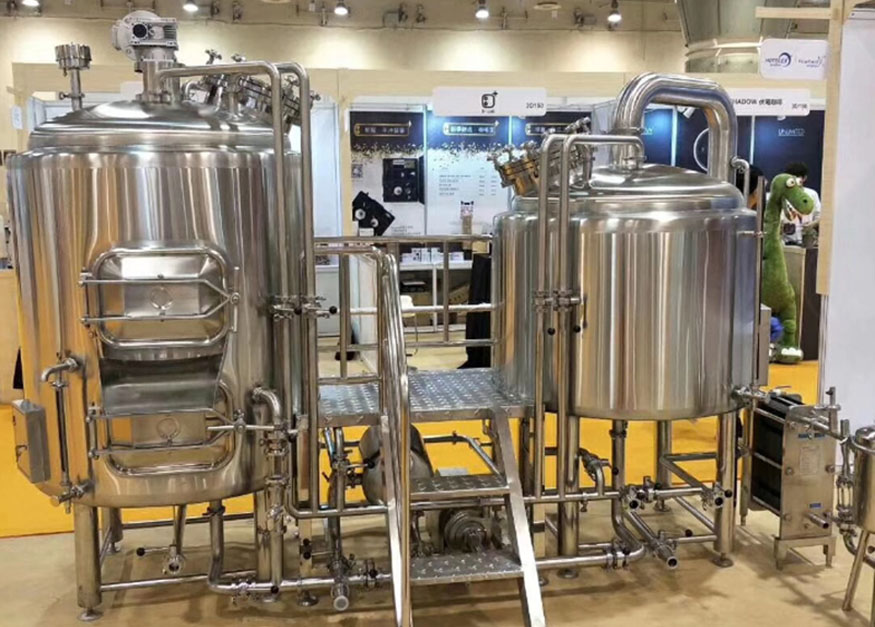

3.5bbl Brewhouse Unit

● Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

● Hot water tank and cold water tank for optional in special combinations

● Infusion or decoction brewing methods are designed exactly

● Stainless steel or copper cladding are popular

● Two stages or single stage heat exchanger for wort cooling

● Completely stainless steel integrated work platform

● Sanitary and efficiency wort pump

● All pipings and fittings

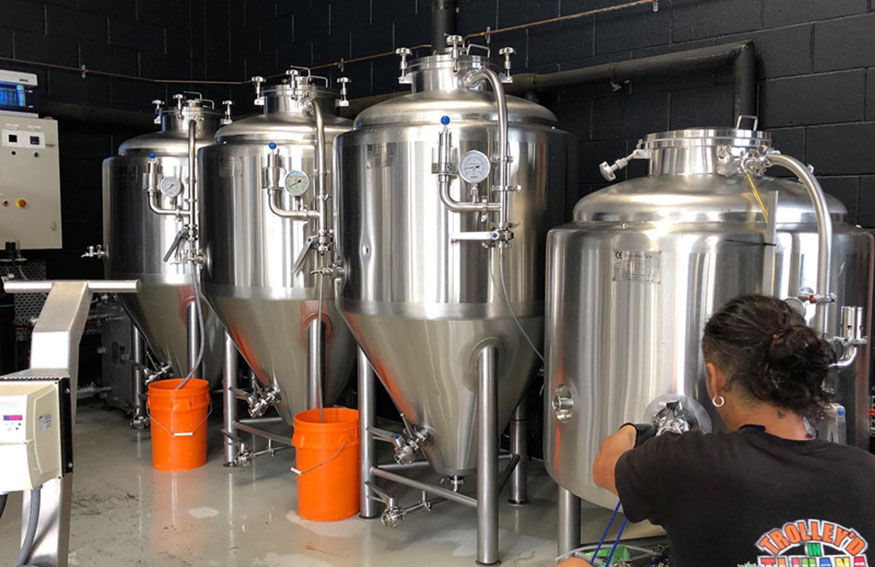

3.5BBL or 7BBL Fermentation Unit

● Standard stainless steel conical cylindrical fermentation tanks

● Single size as brewhouse is common used in restaurant

● Tanks quantity is exactly calculated by fermentation cycle for various beers

● All manhole, valves, pressure gauges, fittings etc are included

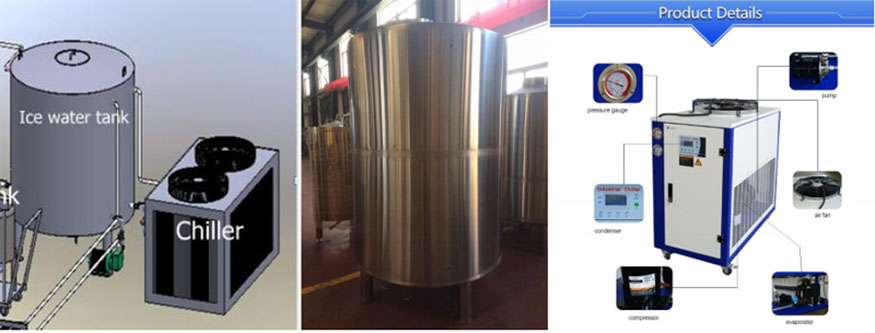

Cooling Unit

● Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

● Efficiency chillers or refrigerators with fryon to supply cooling energy

● Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

● All pipes, fitting, insulation materials are include

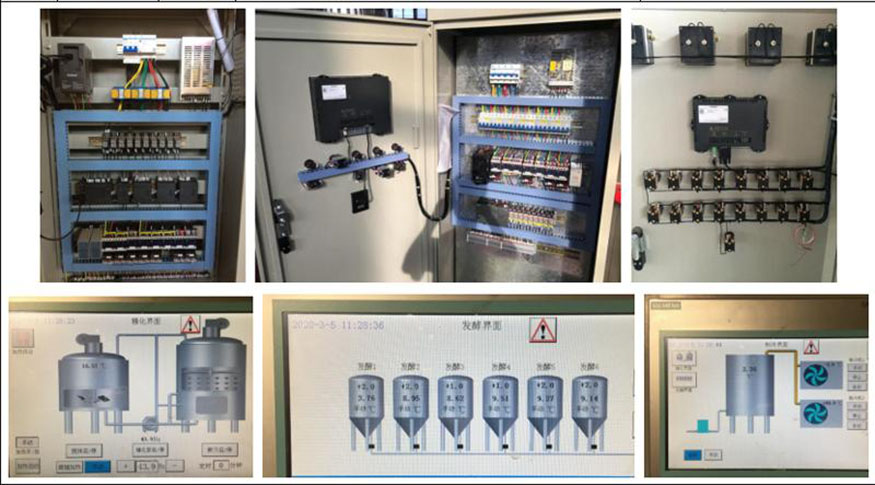

Controlling Unit

● Electrical controlling cabinet with temperature, on-off controlling for brewhouse

● Electrical controlling cabinet with temperature, on-off controlling for cooling parts

● Temperature controller, thermocouple, solenoid valves etc are included

● PLC with touch screen panel for special request
