Description

The semi-automatic brewery system is our standard design brewhouse with pneumatic valves, then through the air pipes to connect PLC control system, then only you can touch the button on screen to open the valve.
It will help you to brew and easy brew.

Advantages
1. Accurate Temperature control : Though the PT100 system, the temperature will display in time on Screen, the PLC will send the signal to Heater and start to heating.
2. Easy brewing: then you don’t need to open the valve, only need to touch the valve on screen and transfer the wort by pipes.
3. Integrated design, easy to install, save installation time and labor.
4. The appearance looks high-end and smart.

Disadvantages
More preparatory work needs to be done in the early stage, such as: air compressor; in normal use, more maintenance is required;

Control system
The semi-automatic control system integrates with brewhouse and cellar tanks’ manual operating material flow and temperature setting. The semi-automatic control system, as part of a new small-scale brewery setup, accounts for around 10–15% of the total cost. However, a control system saves the brewery from additional expenses once production begins – far beyond those of your initial spend.

Function of Semi-Automatic control
1. Display degree together.

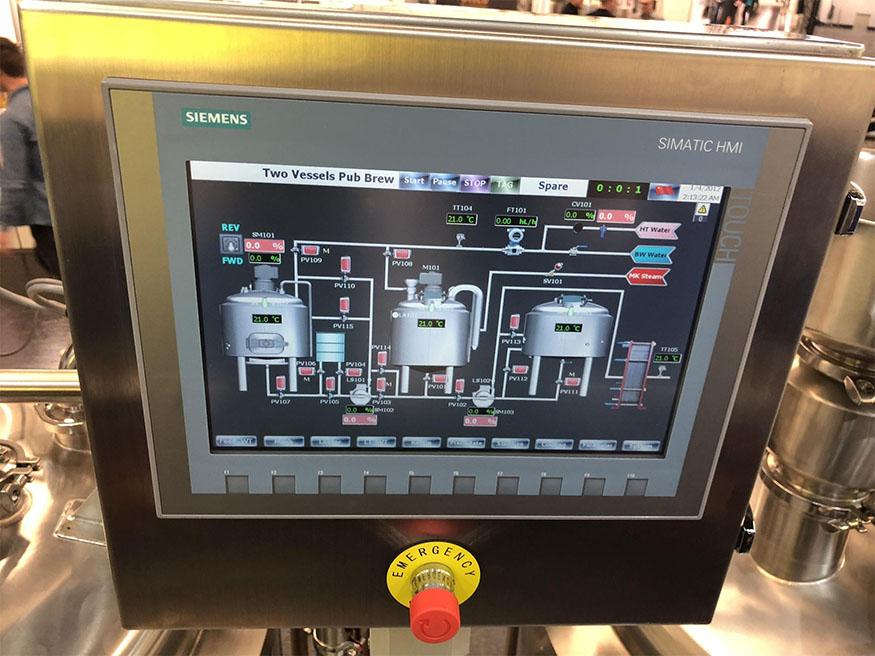

2. Siemens Brand PLC and touch screen.
3. PLC control system.
4. Mash&Lauter temperature display and control.
5. Steam kettle temperature display.
6. Lauter raker motor and pump VFD control.
7. Hot liquor tank temperature display.
8. All pump and motor controls.
9. Vessel light controls.
10. Brewhouse’s temperature automatic control.

Brewhouse cabinet function
● Temperature displayof hot water inlet, mixed water, and cooled wort
● Flow measure for mixed water.
● Temperature display and auto/manual control for MLT & KWP
● VFD control for wort pumps and rake
● Emergency Stop & Alarm
